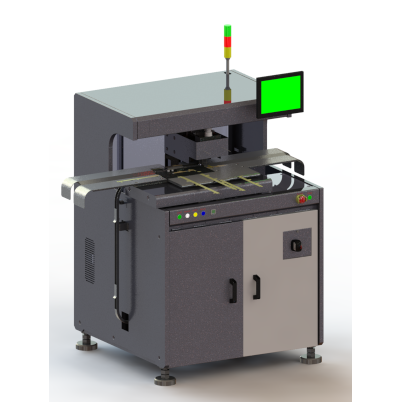

Terminal machine AJ30

This equipment is used for terminal crimping on FPC boards that need to be produced on SMT production lines

Parameters

This equipment is used for terminal crimping on FPC boards that need to be produced on SMT production lines

Product Details

Functional features

It can achieve feeding and crimping at three positions: 0°-90°-180°. If a call is missed or interrupted at any position, it can be made up or continued.

The device is equipped with an MES communication system, which makes it easy to achieve online communication and enables the upload of product scanning information

Suitable for crimping large-sized products in vehicles

Specification parameters

Equipment dimensions: 1400 x 1000x 1600mm(L*W*H)

Feeding direction: Feeding at the middle feeding position -XY axis movement crimping - discharging at the middle feeding position

Product applicable size: Crimping range 0-200mm

Width direction: < 200mm

Workbench height: 1000±100mm

Mold size: Upper mold 20*4.5*49mm; The lower die is 30*4.5*30mm

Feeding method: Manual loading/unloading, automatic crimping /PC

Product positioning method: Limit carrier + positioning pin + cylinder pressure holder

Equipment accuracy: ±0.02mm

Air pressure: 0.46-0.65MPa
