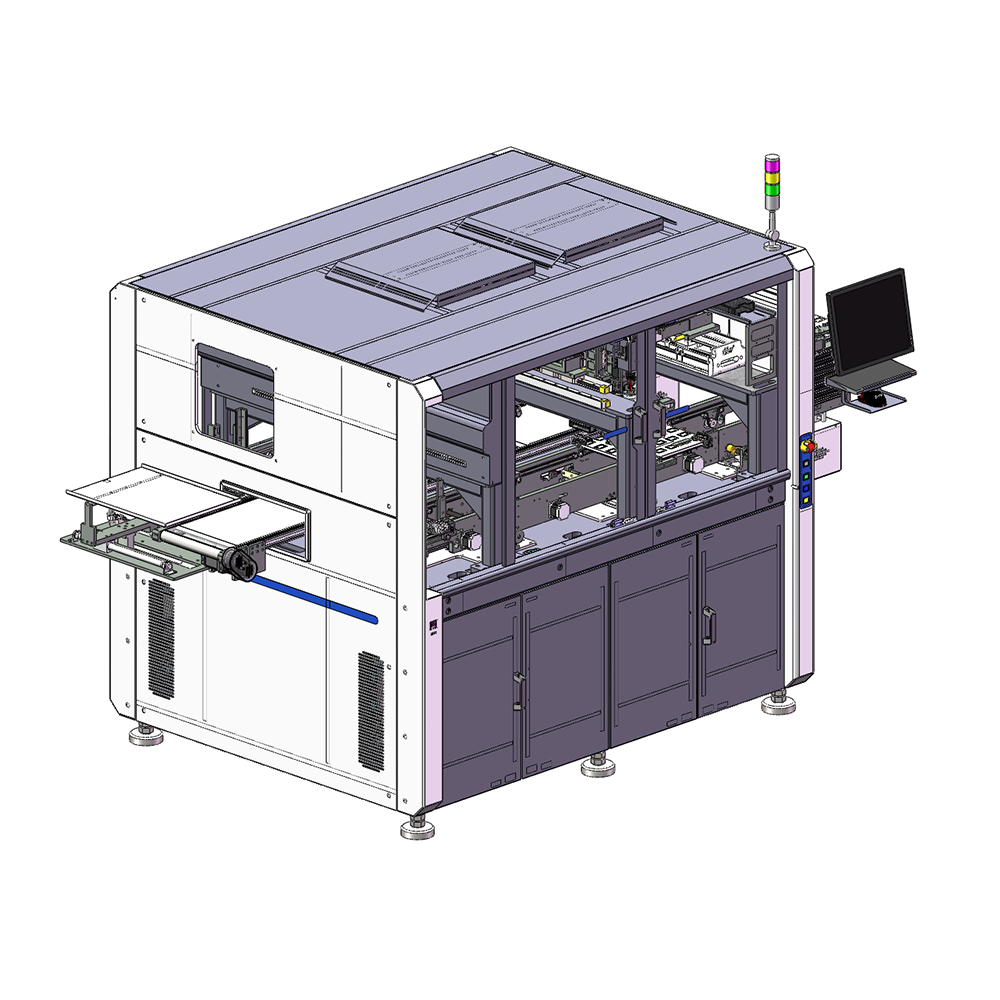

Automatic tray arranging machine PX-53
The FPC punching and cutting process connection line of this equipment is used for the blanking and tray arrangement of single Pc products
- Parameters
The FPC punching and cutting process connection line of this equipment is used for the blanking and tray arrangement of single Pc products
Functional features
It can be connected to a punch press for feeding, achieving the function of online feeding with the lower machine
Flexible production enhances production efficiency
The product can be placed freely, and the CCD automatically recognizes, locates and grabs it
Strong compatibility, with automatic loading and unloading on the upper and lower trays, enabling loading and unloading without stopping the machine.
Optional connection to AGV automatic Tray for loading and unloading.
It can be optionally connected to the Mes system to achieve binding of products and trays, etc.
Specification parameters
Equipment dimensions: 2000 x 1600 x 1750mm(L*W*H)
Feeding method: Tray stacking feeding
Tray stacking height: 300mm
Tray size:
Max: 350mm*300mm
Min: 250mm*130mm
Feeding height: 1000mm±20
Equipment accuracy: ±0.15mm
Maximum adjustable width of the track: 300mm
Yield rate: Over 95%
Weight: ≤1200kg
CT: 0.8S/PCS
Working dimensions: 350mm*300mm
