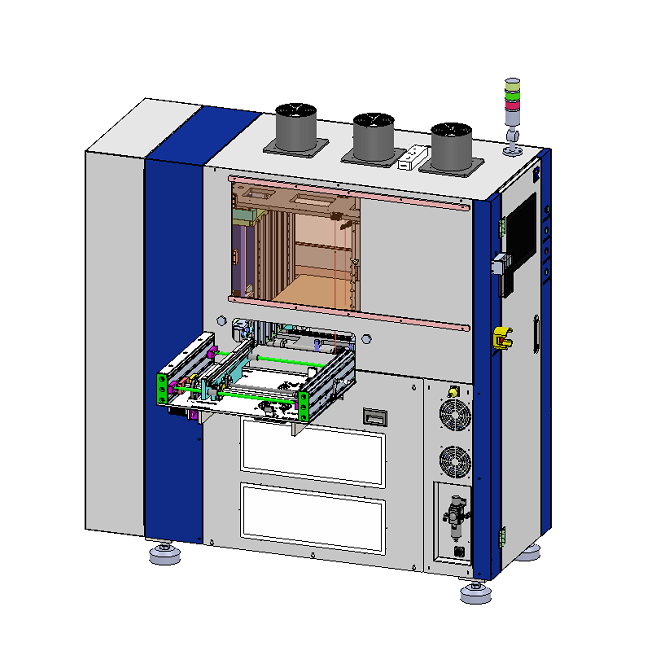

Single-frame cooler
This equipment is suitable for cooling and heat dissipation of FPC products and fixture boards after they flow out of reflow oven welding equipment, etc
- Parameters
This equipment is suitable for cooling and heat dissipation of FPC products and fixture boards after they flow out of reflow oven welding equipment, etc
Functional features
It can be connected to other devices online.
Temperature range: 0℃ to 150℃
The temperature check can be recognized. If the temperature of the output vehicle is lower than the set value, the vehicle will flow back.
It adopts direct transmission with precision gears, featuring high transmission accuracy and long service life.
Real-time display of cooling time, the number of cooling vehicles and the number of floors they are on, achieving visual management.
It can automatically adjust the width and record the height used for each product.
Specification parameters
Equipment dimensions: 620*1550*1700+500mm(docking station)
Equipment accuracy: ±2 ℃
Working dimensions: Single frame, 12 layers or 18 layers
Transmission method: Track + vehicle
Feeding method: Connect with the track line
Material size: Max350*450*20mm(fixture plate)
Air pressure: 0.6 (MPa) Dry air source
Electrical specification: 380V/220V
CT: 4 minutes /PCS
