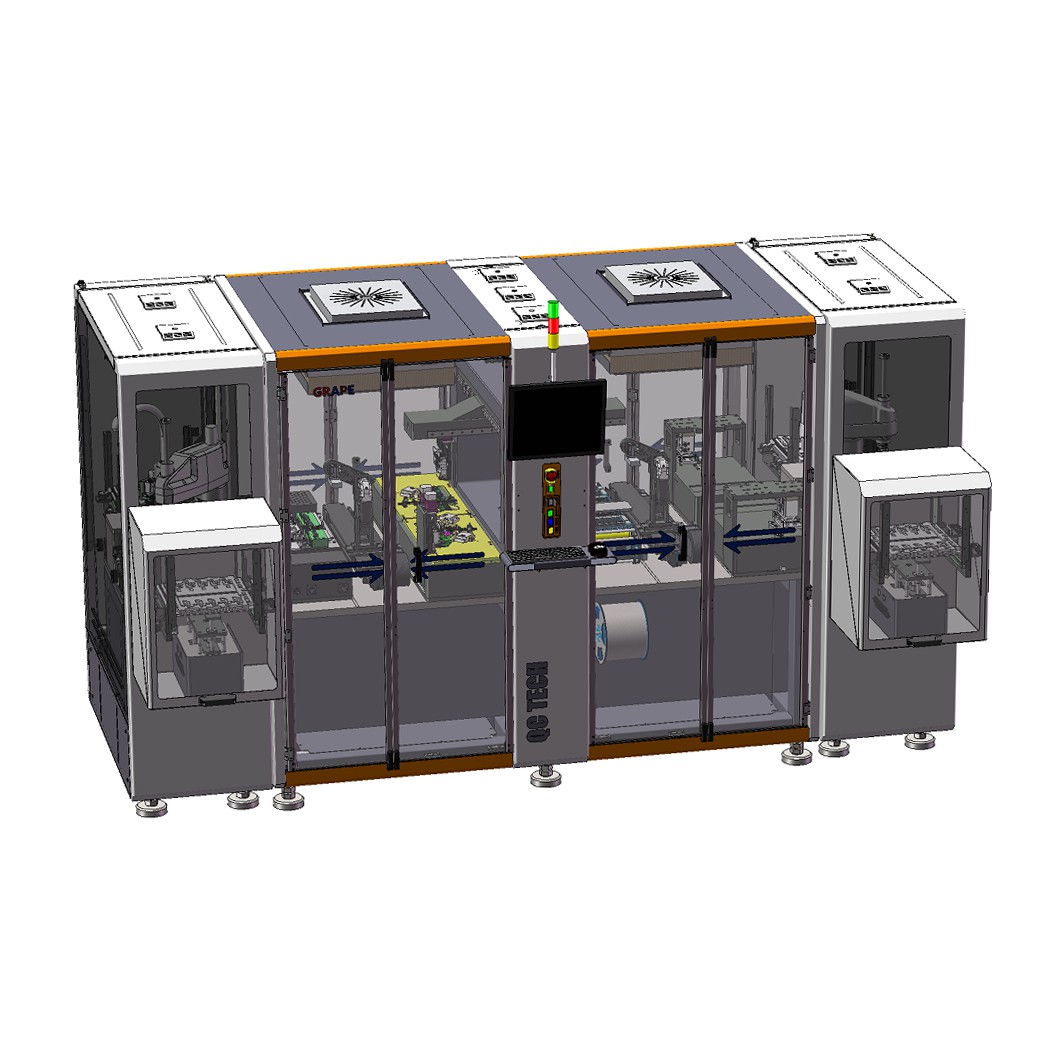

Process module workstation FA5
Based on the platform workstation automation, it is deeply developed and designed, covering all functions and full application range
- Parameters
Based on the platform workstation automation, it is deeply developed and designed, covering all functions and full application range
Functional features
Platform-based modular workstations
In-depth research and development design
Cover all functions
Full range application.
Specification parameters
Dimensions: 3400*1250*1920mm
Power supply: 3-phase 5-wire 380V 20KW
Supply air pressure: 0.6 (Mba), dry air source 1500L/min
Equipment weight: 3800Kg
Bonding range: Material ≤460*260mm, product width ≤260mm
Bonding temperature: Maximum 130±5℃ for the mounting platform and maximum 85±5℃ for the mounting head
Pressing structure: Head size: 500*290mm, maximum pressure: 2200KG
Bonding temperature: The maximum temperature for the upper and lower bonding platforms is 130℃
Pressure component: The sensor has a nominal pressure of 5T and a display accuracy of 1KG
Pressure monitoring: Pressure can be output at a frequency of 0.5 seconds per time
Bonding efficiency: < 12S/PCS
Mounting accuracy: ±0.1mm
Plate transfer method: Tray loading and unloading
Product specification: 274*324mm
Deviation correction system: EPC automatic deviation correction
