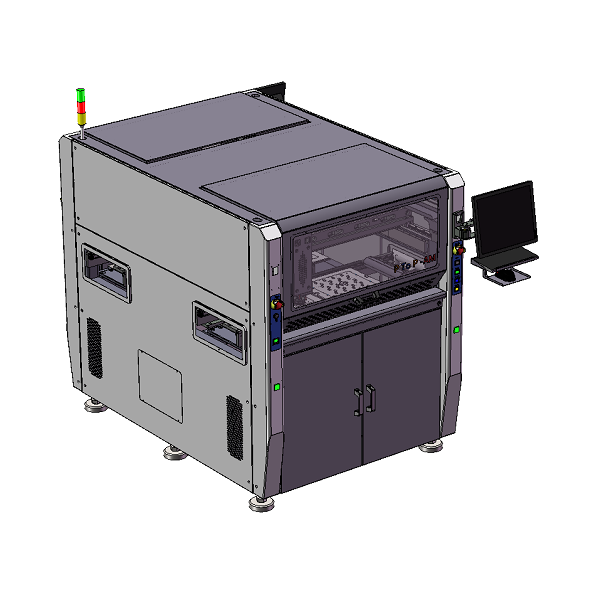

PX350-PTP
This equipment is designed for the process of switching between the A side and the B side of FPC boards in the SMT production section
- Parameters
This equipment is designed for the process of switching between the A side and the B side of FPC boards in the SMT production section
Functional features
CCD scanning can achieve the integration of three codes, and the quality can be traced.
Ccd-assisted precise positioning vehicles and products are of guaranteed quality.
Automatic vehicle cleaning function;
Rapid vehicle replacement enables quick change of material numbers.
The equipment can be optionally equipped with AGV automatic feeding, etc.
The AB vehicle can be automatically switched or flipped over.
Specification parameters
Device dimensions: 12150*1800*1500(L*W*H), excluding display and lamp
Product size:
Max: 300mm*350mm
Min: 250mm*100mm
High-temperature plate size:
Max: 300mm*350mm
Min: 320*250mm
Working dimensions: 300mm*350mm
Equipment accuracy: ±0.1mm
Feeding height: 910mm±20
Air pressure: >0.5kpa
Electrical specification: 220V
Weight: ≤1900kg
CT: 16S
