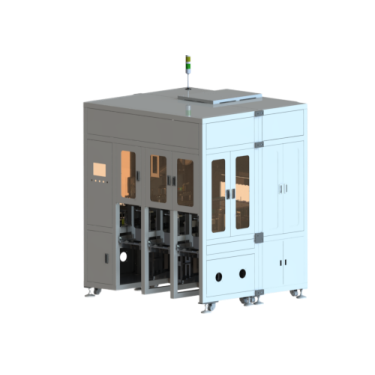

VCP plate retraction and release machine

Functional features

Realize the feeding and discharging functions of the VCP copper-plated wire equipment and connect it to the subsequent workstations

Suitable for full-size products (250mm/500mm material width), with fully automatic loading and unloading

Distinguish between OK products and NG products

/ Place the partition board/grid paper

Optional scanning to distinguish products

Connect the subsequent work stations to achieve AGV connection and matching, and increase output

Optimize human resources

Reduce manual errors and achieve a 24*7 work schedule

Specification parameters

Equipment accuracy: ±5MM

Working dimensions: 305*500mm

Material size: (250/305) *500MM

Material plate thickness: 26μ-400μ

Work efficiency: ≤11 seconds

CT: 10s/PN

Feeding method: Roller conveyor

Material dimensions: Length 500-250mm, width 305-250mm

Equipment dimensions: 1700mm*1900mm*2180mm
