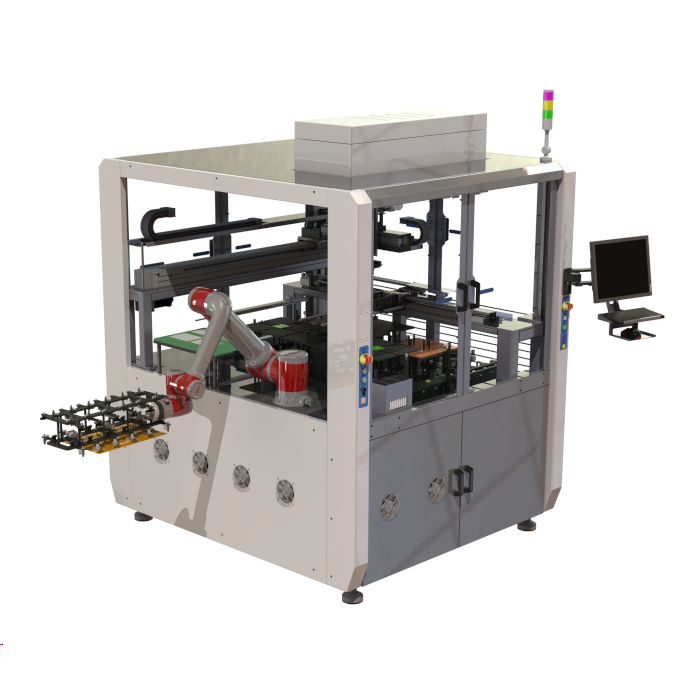

Substrate Automation (ET substrate planter
This equipment is suitable for the automatic loading and unloading of FPC electrical testing machines
- Parameters
This equipment is suitable for the automatic loading and unloading of FPC electrical testing machines
Functional features
1. It can realize the automatic loading and unloading frame for AGVs
2. The modular quick-change design of the suction cup enables rapid switching and model change.
3. The loading and unloading suction cups are designed with both front and back sides to enhance production efficiency
Specification parameters
1. Dimensions: 1600x1820x1950 (L*W*H)
2. Product dimensions: MAX: 610*360mm, Min: 70*70mm
4. Working height: 900mm±50mm
5. Equipment accuracy: ±0.05mm
6. Power supply: AC 220V, ≤4.5KW
7. Supply air pressure: 0.5-0.7Mpa dry air source
8. Equipment weight: Approximately 2000Kg
9. Equipment CT: ≤12S/cycle
10. Stacking height: ≤200mm
