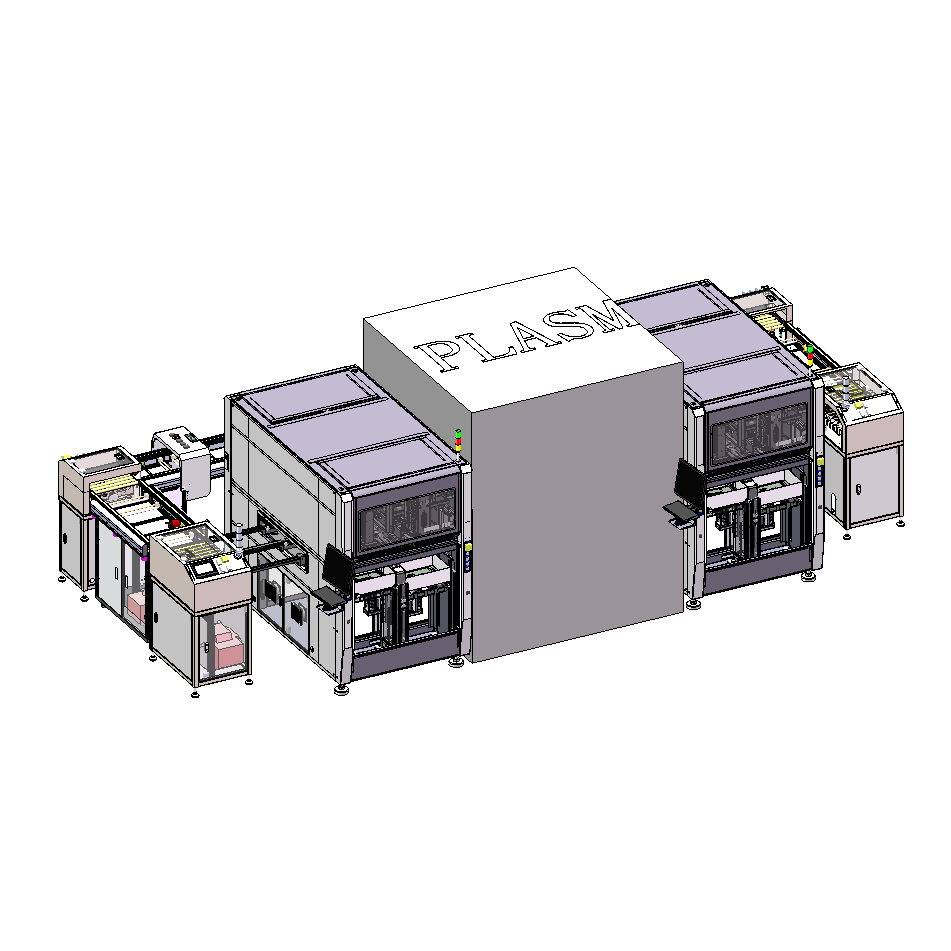

Loading and unloading with atmospheric Plasma fixtures

Functional features

1. CCD scanning can achieve the integration of three codes, and the quality can be traced.

2. Ccd-assisted precise positioning vehicles and products, with guaranteed quality;

3. Automatic vehicle cleaning function;

4. Quick vehicle replacement enables rapid change of material numbers.

5. The equipment can be optionally equipped with AGV automatic feeding systems, etc

Specification parameters

1. Equipment dimensions: 6500*2800*1800(L*W*H), excluding display and lamp

2. Product Dimensions

MAX: 350mm*260mm

Min: 250mm*100mm

3. Working dimensions: 350mm*260mm

4. Equipment accuracy: ±0.1mm

5. Feeding height: 1000mm±20 (Plasma equipment height: 1000mm)

6. Method of incoming materials: Tray/kraft paper stacking/left in and right out

7. Air pressure: >0.5kpa

8. Electrical specification: 380V

9. Weight: ≤3000kg

10. CT: 6S
