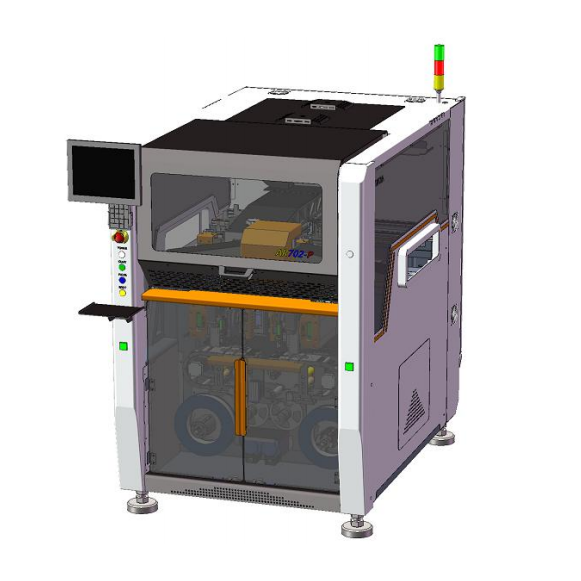

Reverse mounting machine AR702-P
It is applied to the reverse bonding of FPC products
- Parameters
It is applied to the reverse bonding of FPC products
Product Information
☆ Reverse mounting to prevent dust accumulation
☆ Take photos of the materials to correct deviations
☆ Navigation map editing materials
☆ Mounting pressure detection
☆ Automatic scanning, no rework, MES intelligent production, data upload
Basic information
Equipment dimensions: 1000*1500*1470 (L*W*H)
Power supply: AC220V 50Hz
Air pressure: 0.5-0.7 (Mba) Dry air source
Equipment weight: ~1200 KG
Mounting range: 420mm*350mm*8mm
Number of nozzles: Double nozzles
Mounting specifications: Min: 1.5*1.5mm/MAX: 30*50mm
Bonding efficiency: 1 second/PCS
Bonding accuracy: 0.1mm
Material types: Two types of coil materials are supplied
Handling method: Track transmission (5 seconds when entering and leaving the plate)
