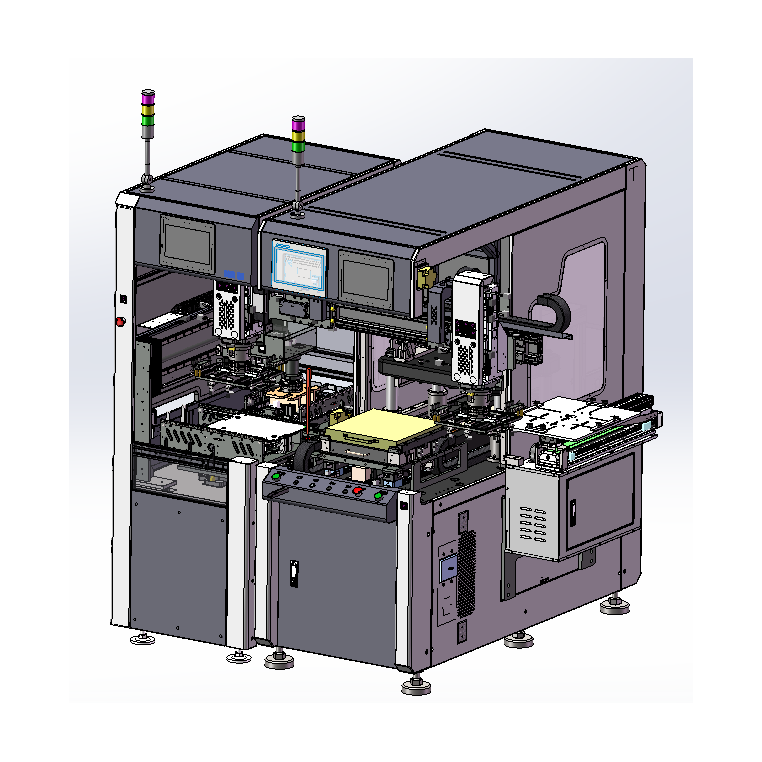

Quick-change punch press
This equipment is suitable for flexible FPC circuit boards with dimensions ranging from 320mm to 260mm, and is used in conjunction with a punch press for feeding and connection devices
- Parameters
This equipment is suitable for flexible FPC circuit boards with dimensions ranging from 320mm to 260mm, and is used in conjunction with a punch press for feeding and connection devices
Functional features
1. AGV automatic mold changing and removal are adopted, with a mold changing time of less than 5 minutes.
2. The suction cups adopt one-button quick change, with a change time of less than 2 minutes.
3. It is equipped with functions such as plate separation, punching, automatic waste material throwing, and automatic tray arrangement
Specification parameters
1. Equipment dimensions; 2300*2020*1910 (L*W*H), excluding monitor & three-color light
2. Product Dimensions
MAX; 360*275mm Min; 310*250mm
3. Working dimensions: 360*275mm
4. Equipment accuracy: ±0.1mm
5. Working height: 900mm±30mm
6. Method of incoming materials: Track transmission
7. Electrical specification: AC 220V 50/60Hz
8. Air pressure: 0.5-0.7MPa, dry air source
9. Weight: ≤3000Kg
10. CT: 16s
