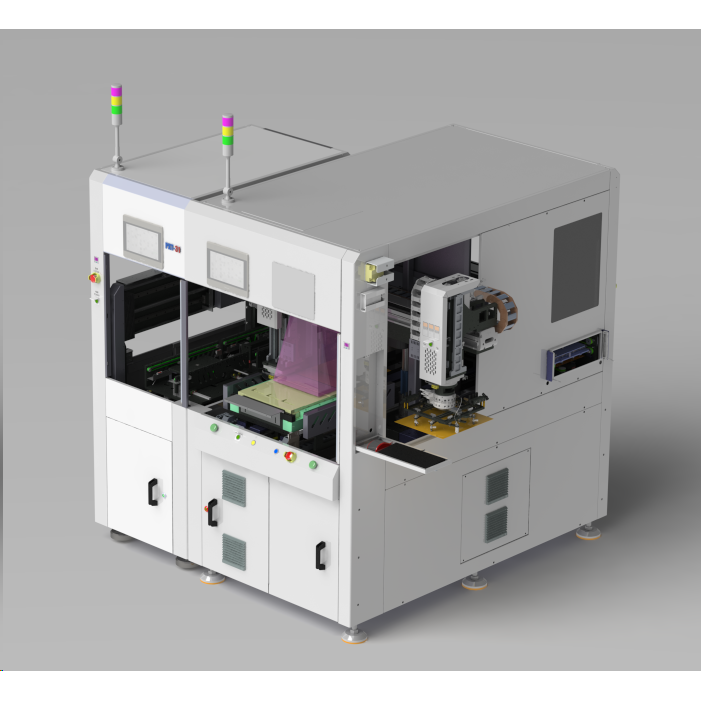

Compound die punch press

Functional features

1. It is suitable for many acupoints and the product is relatively small

2. The products remain in the upper die, and a single piece of product is directly dropped onto the receiving tray

3. It is simultaneously compatible with standard press dies and punching and cutting functions

Specification parameters

1. Equipment dimensions; 1050*1950*2000 (L*W*H), excluding monitor & three-color light

2. Product size: MAX; 360*275mm Min; 310*250mm

3. Working dimensions: 360*275mm

4. Equipment accuracy: ±0.1mm

5. Working height: 900mm±30mm

6. Method of incoming materials: Track transmission

7. Electrical specification: AC 220V 50/60Hz

8. Air pressure: 0.5-0.7MPa, dry air source

9. Weight: ≤3000Kg
