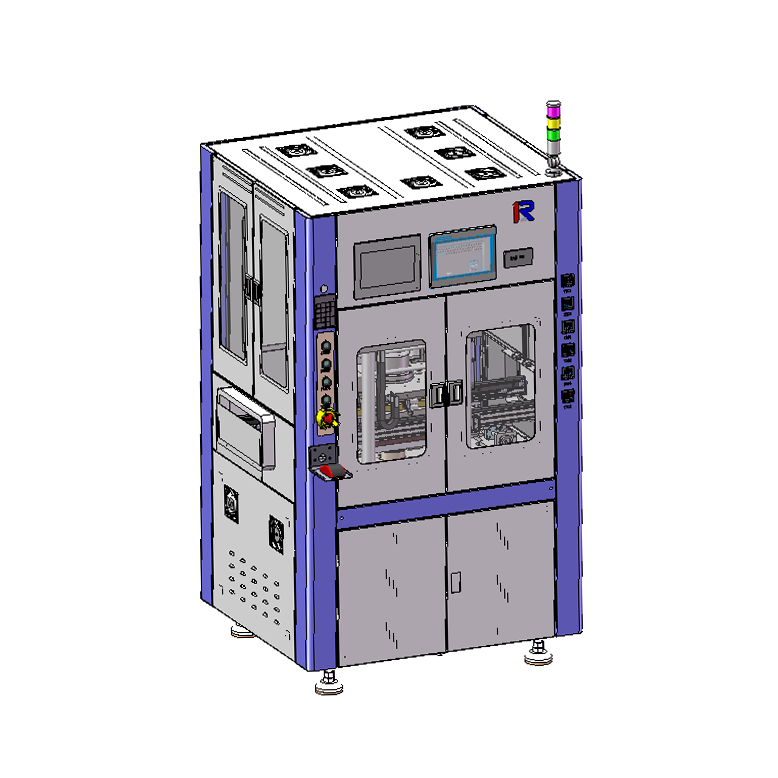

Online press machine PPG-4T

Functional features

It can be connected to the production line for automatic production connection.

It can be cold-pressed and hot-pressed. The hot-pressing temperature can be adjusted from room temperature to 150℃.

It can precisely control the pressure range and prevent overpressure or underpressure.

The parameters of the equipment are visualized and the quality is traceable.

Specification parameters

Device Dimensions: 1225x980x2165(L*W*H)

Fixture size:

Max:420*250mm

Min:280*250mm

Carrier plate positioning accuracy: ±0.2mm

Compressive force accuracy: ±10%

Working height: 900mm±50mm

Product range: 360*260mm

Working mode: 1KW servo motor + lead screw

Air pressure: 0.6 (MPa) Dry air source

Electrical specification: 380V

Weight: ≤1500Kg

CT: 20S/SHEET(excluding holding time, holding time MAX15S)

Working dimensions: 420mm*250mm
