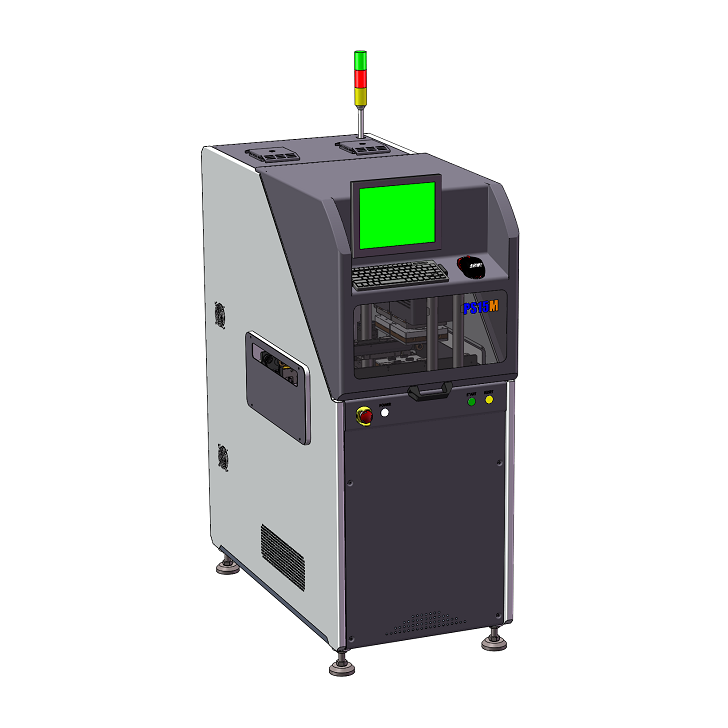

High-precision online variable pitch point press PS28
This equipment is used for multiple lamination of the entire product sheet
- Parameters
This equipment is used for multiple lamination of the entire product sheet
Functional features
Variable pitch lamination
Real-time pressure monitoring
Data Upload
Specification parameters
Working dimensions (mm) : 400*350
The equipment temperature is less than 180℃
The equipment pressure is ≤100N
Bonding efficiency CT: 4 seconds per time (excluding holding time, plate entry and exit time, and identification time)
Transmission method: Track + vehicle
Number of press heads: 8 heads
Die size:
Upper mold MIN:14*80mm
Lower die MAX:110*259mm
Energy consumption/Power supply: AC220V 50HZ 3KW
Repeatability accuracy: ±0.05mm
Weight (Kg) : ≤900kg
Dimensions (mm) (L*W*H) : 1280*928*1789
