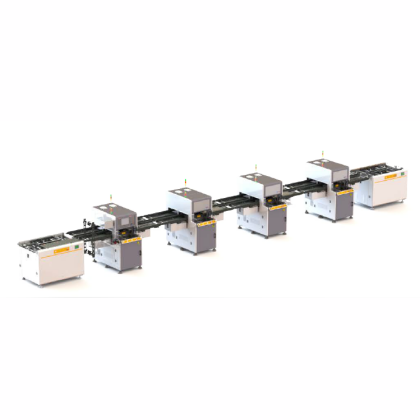

New energy four-line press PU25T-15

Functional features

The integrated production line combines feeding, stamping, translation and automatic addition of spacer paper, enabling rapid production and loading/unloading of products

The overall connection line adopts methods such as CCD photo positioning for feeding with pins, mechanical hand feeding and stamping on the press, module + guide rail to move the FPC, mechanical hand feeding and secondary stamping on the press, and automatic paper separator addition by the paper separator robot. The overall connection line reduces labor and saves time

The device is equipped with an MES communication system, which makes it easy to achieve online communication and enables remote control

Specification parameters

Connection dimensions: 13690 x 11480x 1620mm(L*W*H)

Feeding direction: Left in and right out - after the product is returned - left out

Product applicable size:

Length direction: 600-1500mm

Width direction: 250-300mm

The fixed width of the fixture plate is 380mm

Workbench height: 1050±30mm

Whole machine CT: 25S/punch

Mold size: 650*310mm

Feeding method: Manual feeding and automatic feeding for punching and cutting

Product positioning method: Upper and lower fixture plates +PIN needle positioning

Equipment accuracy: ±0.1mm

Air pressure: 0.5 to 0.7MPa

Electrical specification: 380V

CT: 16S

Working dimensions: 1500mm*300mm
