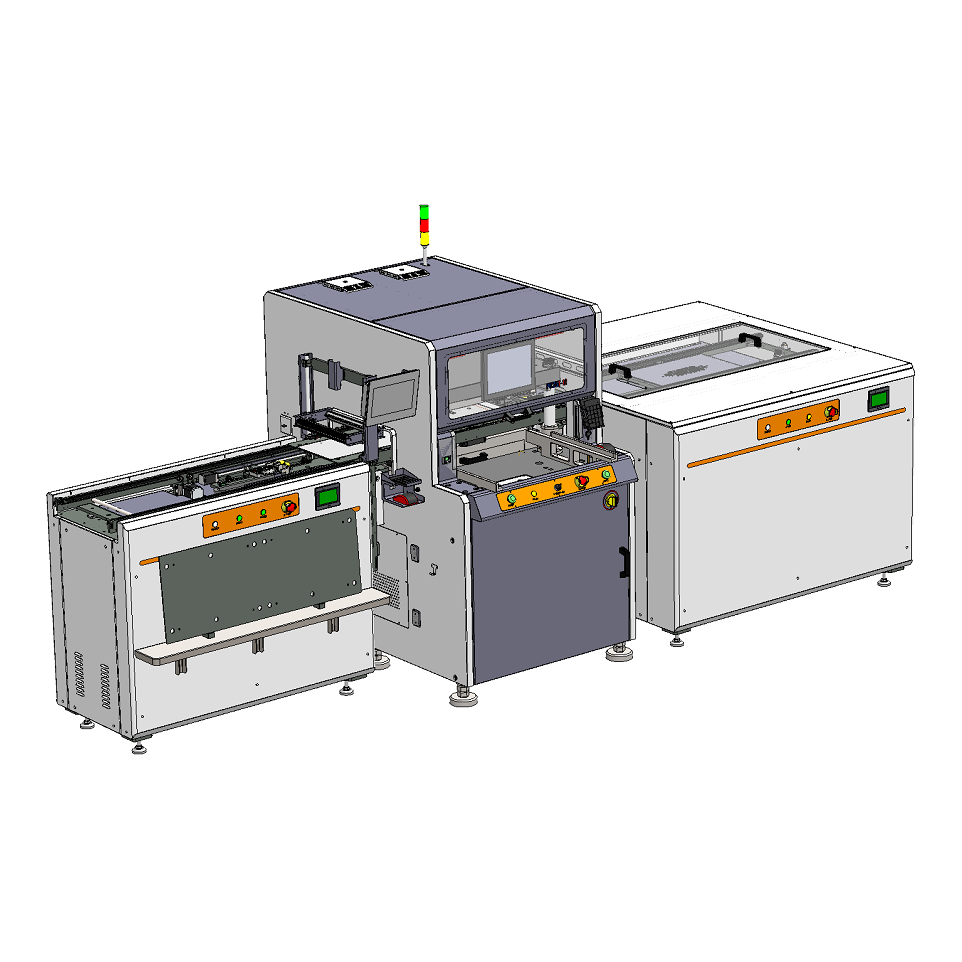

25T Rotary Press PU25T-12

Functional features

One loading and unloading can punch and cut both ends of products with a length of 600-1200mm.

The product can be clamped and positioned once, and then continuously punched and cut. It rotates automatically and is suitable for punching and cutting mirror-symmetrical products

The device is equipped with an MES communication system, which makes it easy to achieve online communication and enables the upload of product scanning information

It is suitable for the punching and cutting of large-sized new energy vehicle products and reduces the need for multiple PIN clamping and handling of the products

Specification parameters

Connection dimensions: 4150 x 1560x 1600mm(L*W*H)

Feeding direction: left in and right out - Return after rotation - left out

Applicable dimensions of the product: 600-1200mm

Width direction: 250-300mm

The fixed width of the fixture plate is 380mm

Workbench height: 1050±30mm

Mold size: 650*310mm

Feeding method: Manual feeding and automatic feeding for punching and cutting

Equipment accuracy: ±0.1mm

Air pressure: 0.5 to 0.7MPa

Electrical specification: 380V

Whole machine CT: 25S/punch

Working dimensions: 1200mm*300mm
