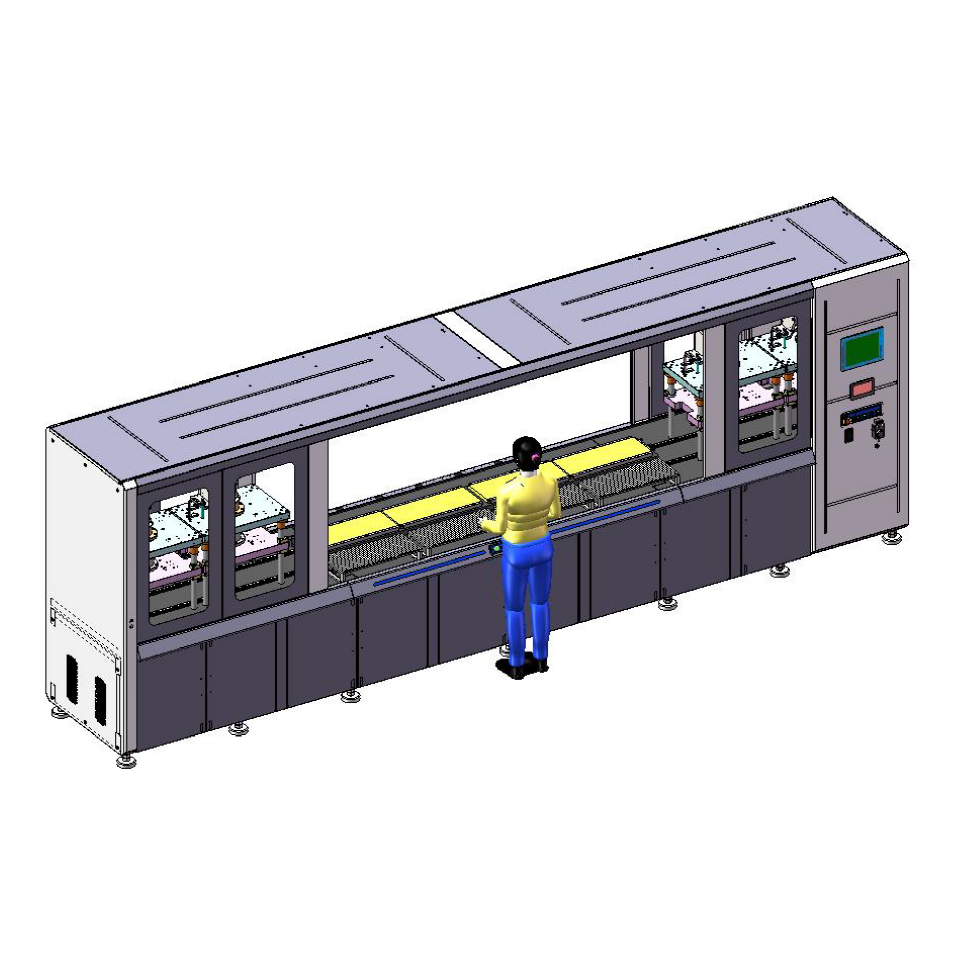

Four consecutive runs of 2.2-meter connection lines

Functional features

This device has a wide compatibility range for PFC sizes and can accommodate entire sheets of products with lengths ranging from 200 to 2500MM.

2. The innovative mold linkage design enables the coordinated operation of the four stamping units. The four stamping stations can be flexibly configured with different stamping dies according to the FPC production process requirements, such as die combinations for punching, trimming, forming, etc.

3. The equipment's vision system automatically identifies material information and mold information.

4. In one stamping cycle, FPC undergoes multiple processing procedures in sequence. Compared with the traditional single press's multiple clamping and stamping, this not only significantly improves production efficiency but also reduces positioning errors caused by multiple clamping, enhancing product consistency.

Specification parameters

1. Equipment dimensions: L6100mm*W900mm*H1980mm. Equipment CT:≤40 seconds

2. Applicable products: Peripheral punching and cutting of new energy FPC pads and other applicable types of FPC

3. Single Punch output: 17T

4. Product size: Min150*200mm(WL); Max: 150*2500mm(WL)

5. Single mold size: Max:700mm - 300mm

6. The maximum effective working size is 2500mm*200mm

7. Equipment CT: ≤40 seconds

8. Equipment accuracy: ±0.05

9. Power supply: VAC/50HZ 380V

10. Fixed-position scanning, MES information requirements or handheld scanning (can be automatically scanned, manually adjusted when changing models)
