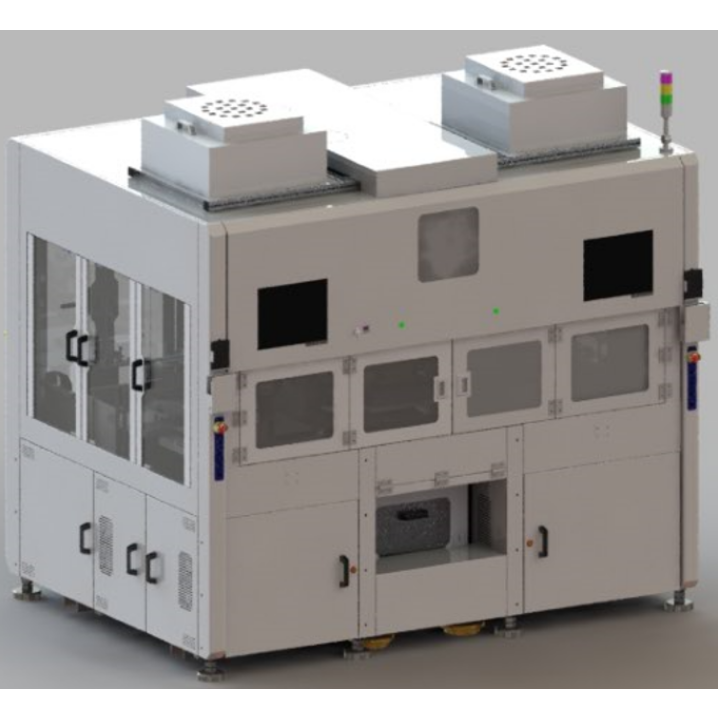

25T crankshaft press

Functional features

1. Visual photo positioning and automatic deviation correction for feeding

2. The servo crankshaft punching is stable and efficient

3. The product can achieve 90-degree rotation and jump jump cutting

4. It is compatible with FPC paper spacer stacking and Tray loading and unloading

Specification parameters

1. Equipment dimensions: 2300*1600*2000mm

2. Punching force: ≥ 25 tons

3. Mold dimensions: 366*200/366*350/366*400mm

4. Blanking depth adjustment accuracy: ±0.02mm

5. Machine working height: 860±30mm (excluding molds)

6. Direction of board entry: Left entry and right exit

7. Press stroke: 80mm

8. Electrical specification: 380V

9. Air pressure: 0.5 to 0.7MPa

10. Weight: 4,500 kg

11. CT:14S/ Single punch (including loading and unloading)
