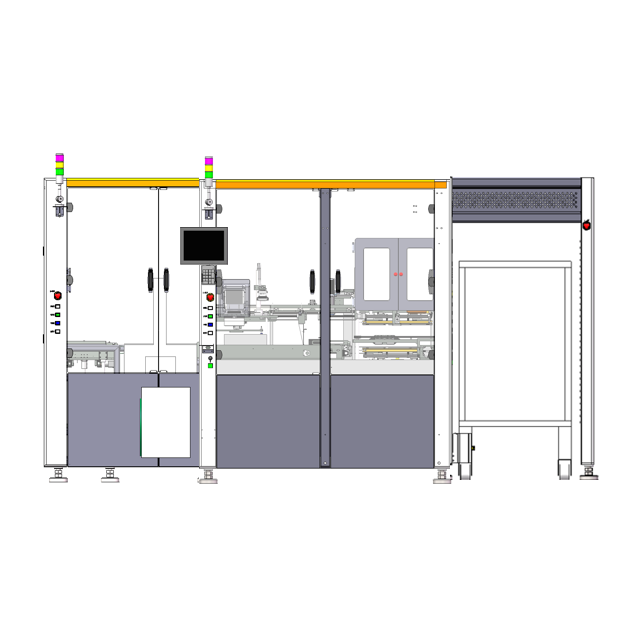

Automatic packaging machine PA450

Functional features

Automatic strapping: scanning code association, I-shaped strapping, automatic centering, roller conveying

Humidity-sensitive card and desiccant automatic dispensing: sealed material bin, temperature and humidity monitoring, stable absorption, precise dispensing

Roll material bag making: automatic deviation correction, roll material slitting, bidirectional lead screw

Bag sealing: Servo lifting, vacuum sealing, lead screw, digital control

Palletizing and discharging: forward four-axis, scanning code association, palletizing algorithm, stable suction

Specification parameters

Equipment dimensions: 4550 x 2300 x 2000mm(L*W*H)

Feeding direction: The left side is the feeding area, and the overall direction is from left to right

Packaging bag size: Applicable width of aluminum foil bags 350 to 650mm

Product size:

Max: 450*360*210 (L*W*H)

Min: 220*130*20 (L*W*H)

The size of the humidity-sensitive card is 98.5*36.5*0.35mm

Desiccant size:

15cm*34cm (Outer diameter of the coil material * width)

55mm*35mm*5mm (Single package length * width * thickness)

Equipment accuracy: ±0.1mm

Feeding height: 910±30mm

Air pressure: 0.5 to 0.7MPa

Electrical specification: 220V

Weight: Approximately 3200KG

CT: 45S per package (subject to product packaging)

Working dimensions: 650mm*650mm
