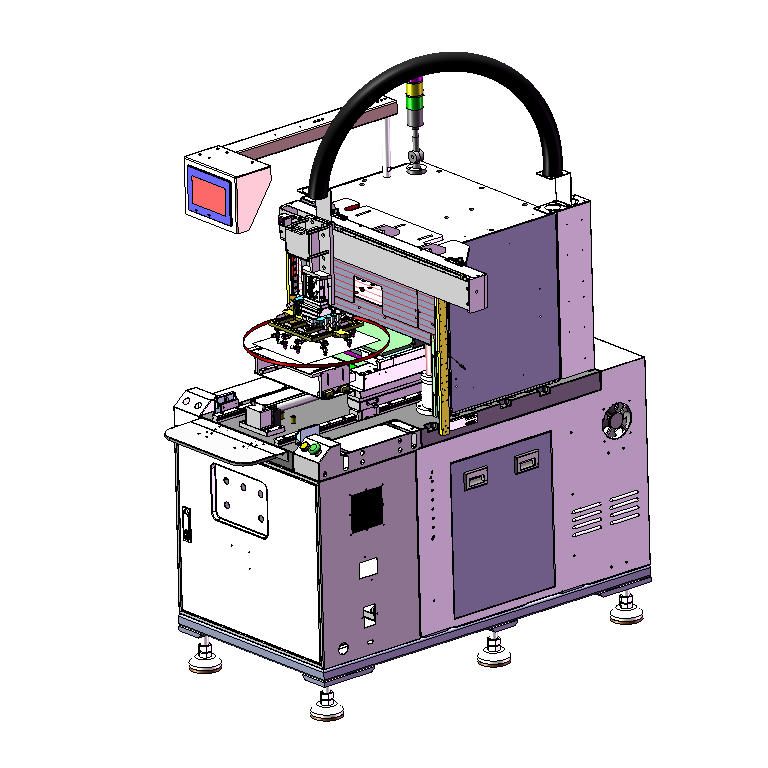

15T press alone with RX-D15T

Functional features

The PUNCH power system output is driven by a 7.5KW servo motor

The stroke can be digitally set and precisely positioned

Multiple types of mold installation methods

The mechanical hand automatically discharges materials

Multiple machines can be connected online or used in conjunction with other FPC production equipment

Specification parameters

Machine dimensions: 1330*1060*1654mm (L*W*H)

Cutting force: >= 15Tons

Mold size:

310mm(width)* 180mm,250mm,310mm,360mm;

360mm(width)* 180mm,250mm,310mm,360mm; Larger sizes need to be customized

The adjustment accuracy of the blanking depth is 0.02mm

Machine working height: 1015+/-20mm

Feeding direction: Front to back

Electrical specification: 220V

Air pressure: 0.5 to 0.7MPa

Weight: ~1700kg
