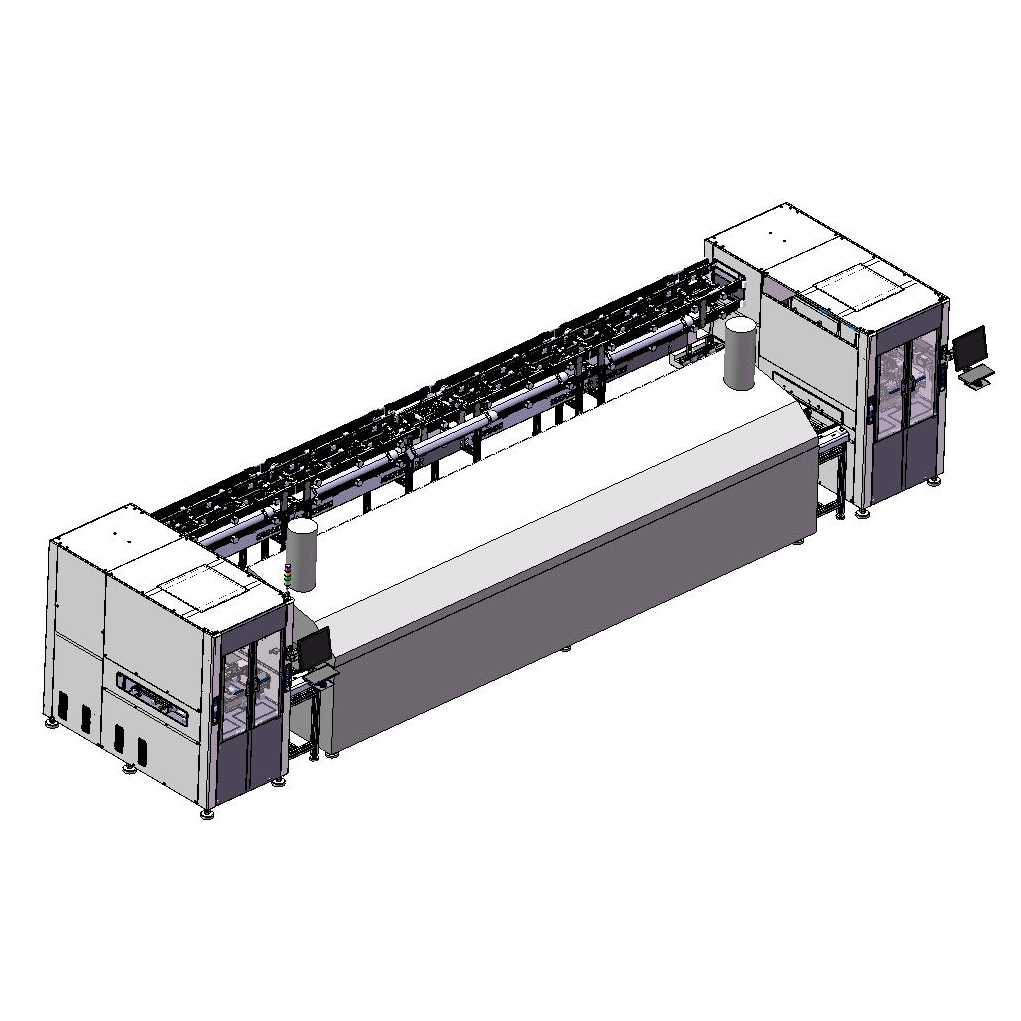

Three-generation knob layering
This equipment is suitable for the SMT reflow oven process of FPC fixture board crimping strips, stripping strips, strip detection, strip reflow and other processes
- Parameters
This equipment is suitable for the SMT reflow oven process of FPC fixture board crimping strips, stripping strips, strip detection, strip reflow and other processes
Functional features
1. CCD scanning can achieve the integration of three codes, and the quality can be traced.
2. The knob module adopts a standard quick-change module, enabling flexible production
3. The knob module adopts a bus motor and rotates independently, which can meet the diversity of pressure strips
Specification parameters
Connection dimensions: 8950*2350*1700mm (L*W*H)
2. Vehicle dimensions:
Max: 400*320mm, Min: 300*250mm, H:6mm
3. Pressure strip size:
Max: 400*320mm, Min: 300*250mm
4. Working height: 900±20mm
5. Equipment accuracy: ±0.1mm
6. Electrical specification: 220V single-phase
7. Air pressure: 0.5-0.7MPa dry air source
8. Weight: ≤7000Kg
9. CT: 16S/pcs
