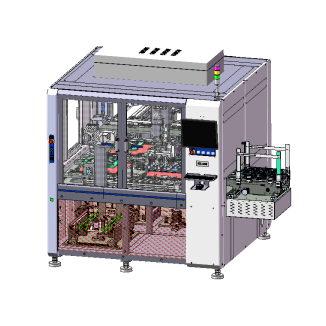

Automatic scanning disk changer
This product is suitable for transferring FPC products from the turntable to the shipping tray, scanning each product, uploading the product QR code information to the MES system for interaction with MES, and is equipped with an online function for cleaning agents
- Parameters
This product is suitable for transferring FPC products from the turntable to the shipping tray, scanning each product, uploading the product QR code information to the MES system for interaction with MES, and is equipped with an online function for cleaning agents
Functional features
Scan the code for each product and upload it to the MES system
2. Transfer the center dial to the shipment dial, CT16S per dial
3. It adopts the CCD positioning function to achieve automatic calibration of the pick-up and placement points
4. It adopts an upper suction cup Tray separation mode, which is compatible with both skirted and skirted tray trays
Specification parameters
1. Appearance dimensions: 2350x1800x1850 (L*W*H), full size
2. Product range: MAX100*150, min:10*20mm
3. Tray size: max:450*400mm, min:250*200mm
4. Working height: 950mm±50mm
5. Tray arrangement accuracy: ±0.1mm
6. Power supply: AC 220V, ≤4.5KW
7. Supply air pressure: 0.5-0.6Mpa dry air source
8. Equipment weight: Approximately 2,500 kg
9. CT: panl/16s
10. Stacking height of material trays: Maximum :300mm
