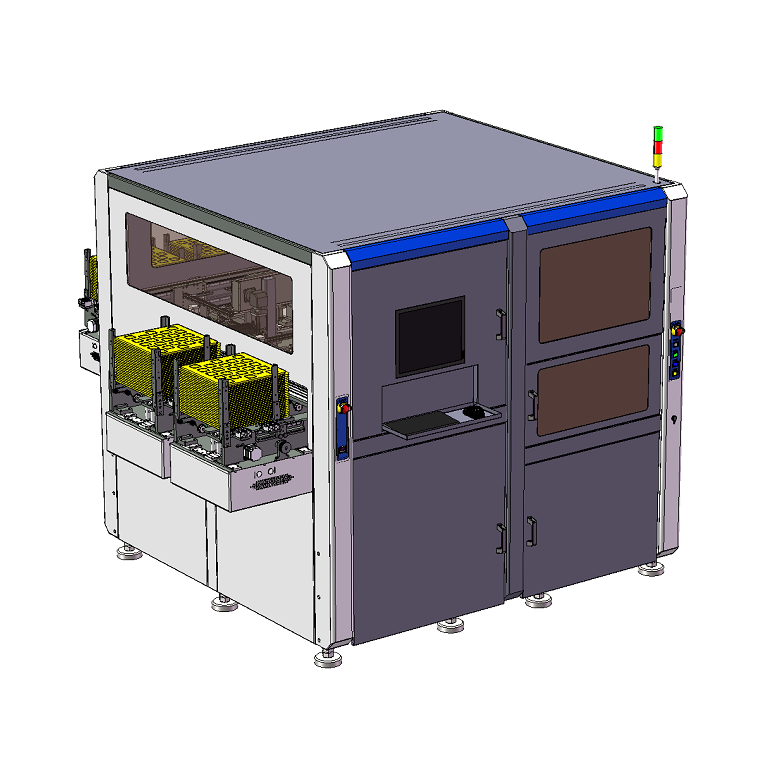

17T punching integrated machine

Functional features

The PUNCH power system output is made by using an 11KW servo motor.

Manual or AGV loading and unloading (optional);

Multiple types of mold installation methods;

Product Tray incoming materials, single Pc product Tray outgoing materials;

It features a high degree of automation, with automatic feeding, alignment, punching and cutting, discharging, and Tray stacking.

Optional connection to the Mes system is available to bind product, work order, mold and other information.

Optional functions such as CCD mold inspection can be added.

Specification parameters

Device dimensions: 2450mm*2300mm*2000mm (L*W*H), excluding display and lamp

Cutting force: ≥ 17Tons

Mold size:

Min: L360xW250mm

Max: L390xW320mm

Blanking depth adjustment accuracy: ±0.05mm

Machine working height: 1050+/-20mm

Entry direction: Left entry and back exit

Electrical specification: 380V

Air pressure: >0.5kpa

Weight: ≤5500kg

CT: 21 seconds (including automatic loading and unloading time)

Working dimensions: 390mm*320mm
