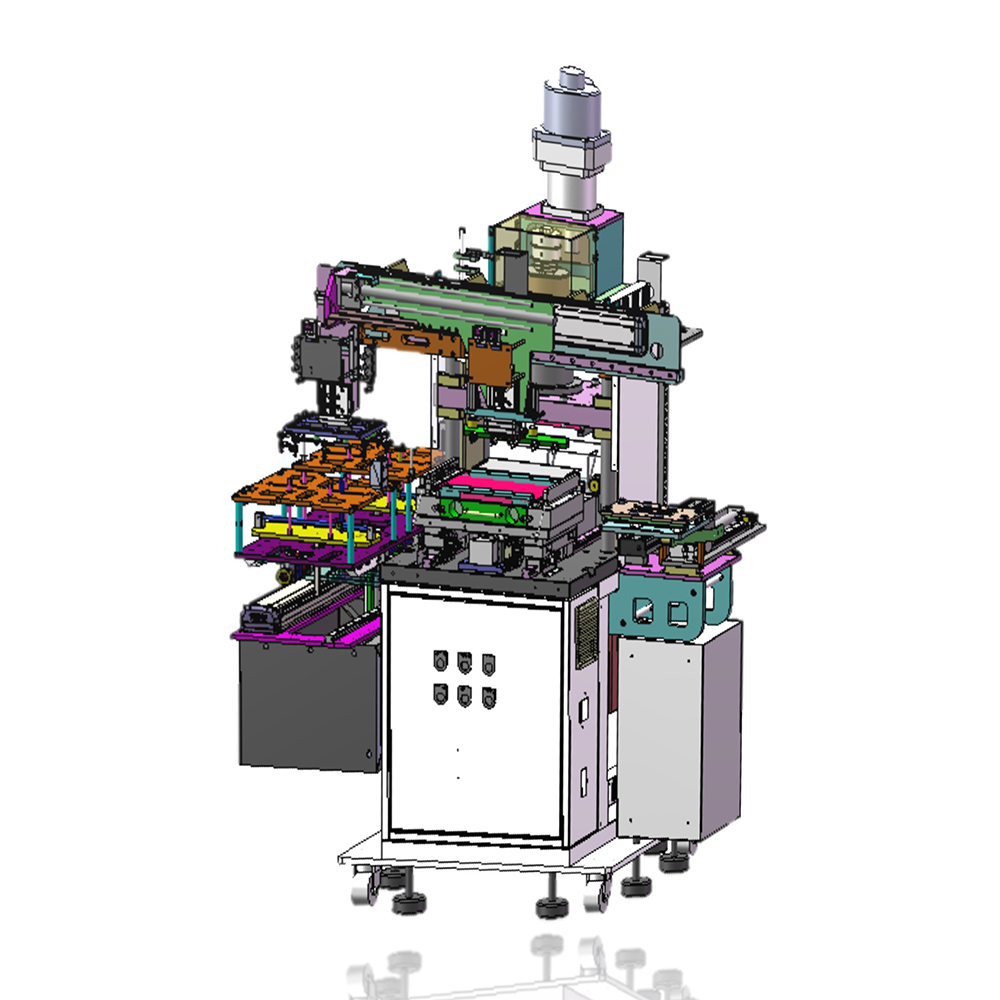

11T press double RX-S11T

Functional features

A 4KW servo motor is adopted for the PUNCH power system output

The stroke can be digitally set and precisely positioned

Multiple types of mold installation methods

The mechanical hand automatically loads and discharges materials

Multiple machines can be connected online or used in conjunction with other FPC production equipment

Specification parameters

Machine dimensions: 1500*1150*1906mm (L*W*H)

Cutting force: >= 11Tons

Mold dimensions: 310mm(width)* 180mm,200mm,250mm;

The adjustment accuracy of the blanking depth is 0.02mm

Machine working height: 1030+/-20mm

/ Feeding direction: Front to back

Electrical specification: 220V

Air pressure: 0.5 to 0.7MPa

Weight: ~900kg
